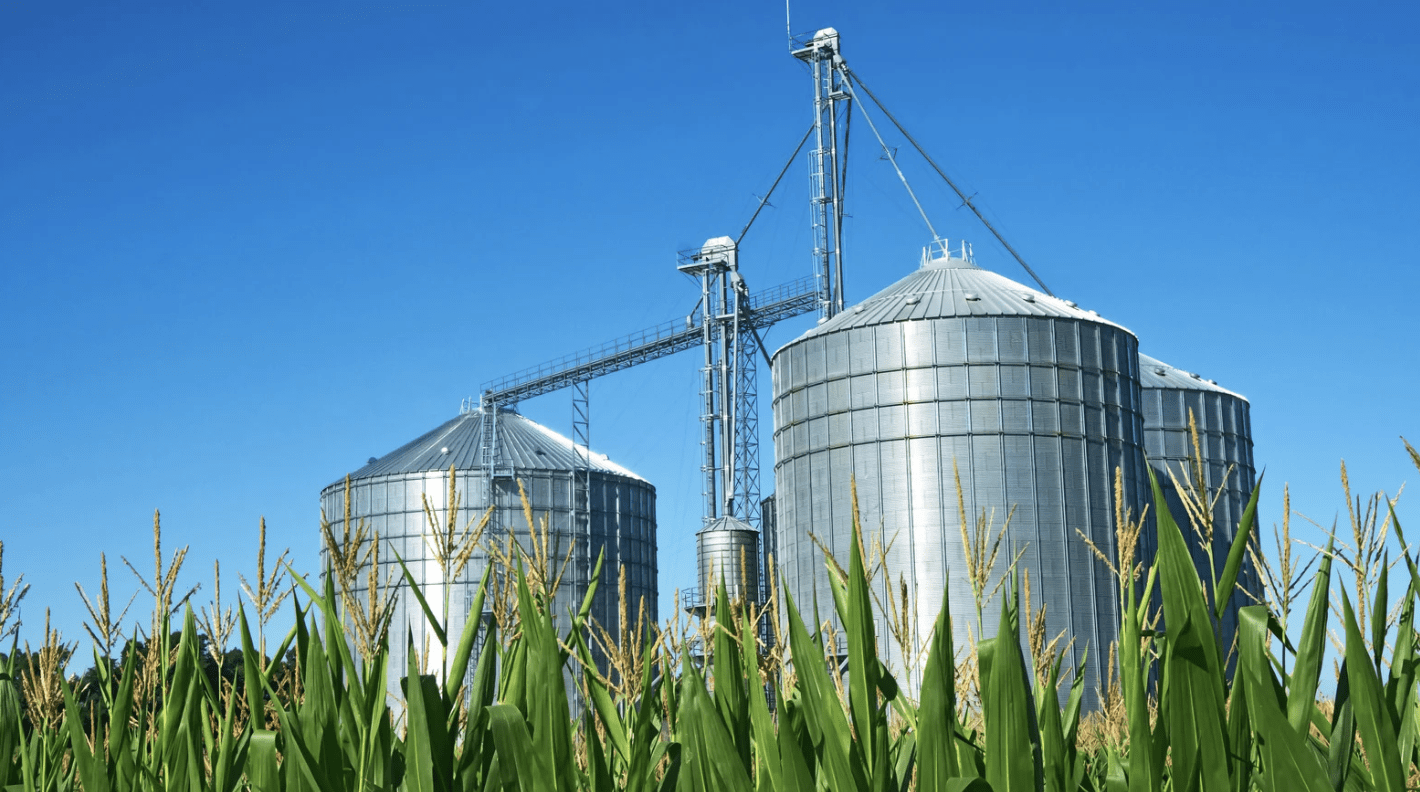

AirSweep ช่วยแก้ปัญหาการอุดตันของวัสดุในถังจัดเก็บอย่างไซโลและฮอปเปอร์ เช่น Funneling, Ratholing, Plugging, Doming, Bridging, Caking, และ Scaling หัวฉีด AirSweep® แต่ละหัวจะปล่อยลมอัดแรงดันสูงรอบทิศทาง 360° เพื่อกระตุ้นการไหลเวียนของวัสดุและครอบคลุมพื้นที่ขนาดเส้นผ่านศูนย์กลางกว้างกว่า 8′ โดยปราศจากการสั่นสะเทือนหรือความเครียดที่จะส่งผลเสียต่อตัวถังเก็บวัสดุ

AIRSWEEP STANDARD MATERIALS OF CONSTRUCTION INCLUDE :

Carbon Steel
304 Stainless Steel
316 Stainless Steel

*For other materials including USDA-approved materials, please contact us at [email protected].

AirSweep-Overview-Brochure

AirSweep-Install-Manual

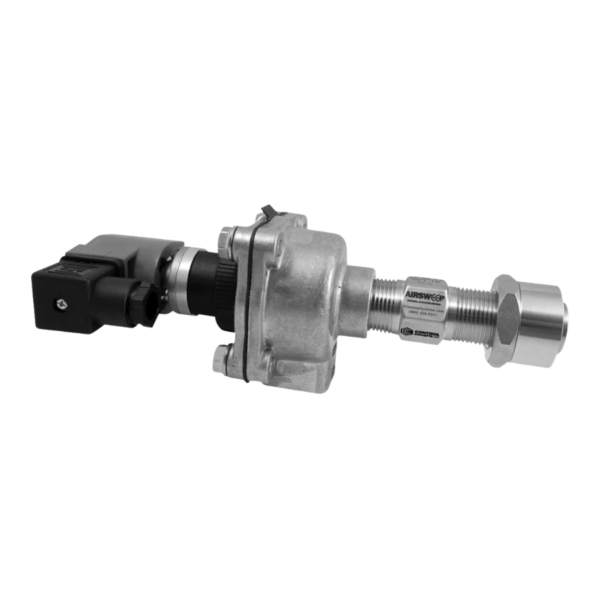

AIRSWEEP – MODEL VA-06 3/4″

System is mounted on the outside of the vessel for easy cleaning and maintenance
Energy efficient – uses plant air
Mount to metal, concrete, fiberglass or wood vessels
Manufactured from high grade steel for long service life

view product download catalog

Ordering Code	Description	Thread	Material
A6-LN-06-CS	AirSweep Lock Nut for VA-06	-	Carbon Steel
A6-LN-06-SS	AirSweep Lock Nut for VA-06	-	304 Stainless Steel
A6-VA-06-MT	AirSweep Mounting for VA-06	-	Stainless Steel
A6-MC-06-SS-T	AirSweep Mounting Coupling for VA-06	-	304 Stainless Steel
A6-VA-06-CS-BSP-TB-C	AirSweep with Mounting Coupling and Lock Nut for VA-06	BSP 3/4″	Carbon Steel
A6-VA-06-CS-BSP-TB	AirSweep without Mounting Coupling and Lock Nut for VA-06	BSP 3/4″	Carbon Steel
A6-VA-06-SS-BSP-TB-C	AirSweep with Mounting Coupling and Lock Nut for VA-06	BSP 3/4″	Stainless Steel
A6-VA-06-SS-BSP-TB	AirSweep without Mounting Coupling and Lock Nut for VA-06	BSP 3/4″	Stainless Steel
A6-VA06CS-MT-24DC	AirSweep with Pulse, 24VDC with Mounting for VA-06	3/4″	-
A6-VA06CS-MT-220AC	AirSweep with Pulse, 250VAC with Mounting for VA-06	3/4″	-

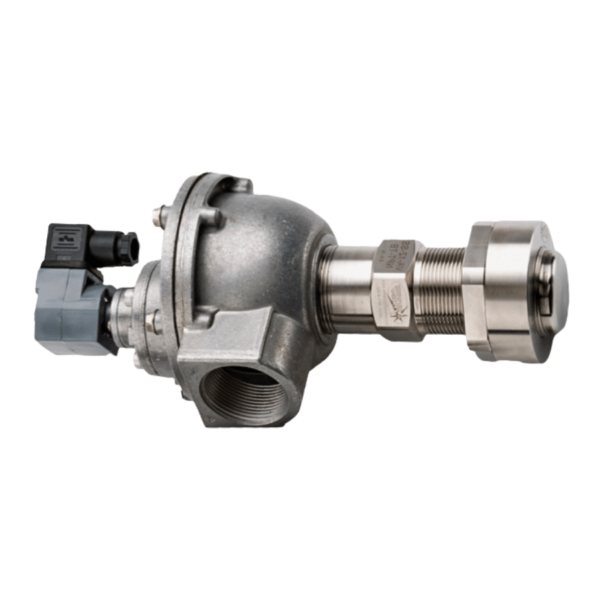

AIRSWEEP – MODEL VA-12 1-1/2″

Activates 4-6 feet diameter of material
Ideal for medium to large bins, silos, hoppers, chutes, mixers, and other vessels and equipment

view product download catalog

Ordering Code	Description	Thread	Material
A6-VA-12-CS-BSP-TB15	AirSweep for VA-12	BSP 1/5"	Carbon Steel
A6-LN-12-CS	AirSweep Lock Nut for VA-12	-	Carbon Steel
A6-LN-12-CS-15	AirSweep Lock Nut for VA-12	BSP 1/5"	Carbon Steel
A6-MC-12-CS	AirSweep Mounting Coupling for VA-12	-	Carbon Steel
A6-VA-12-CS-BSP-TB-C	AirSweep with Mounting Coupling and Lock Nut for VA-12	BSP 1/5"	Carbon Steel
A6-VA-12-CS-BSP-TB	AirSweep without Mounting Coupling and Lock Nut for VA-12	BSP 1/2"	Carbon Steel

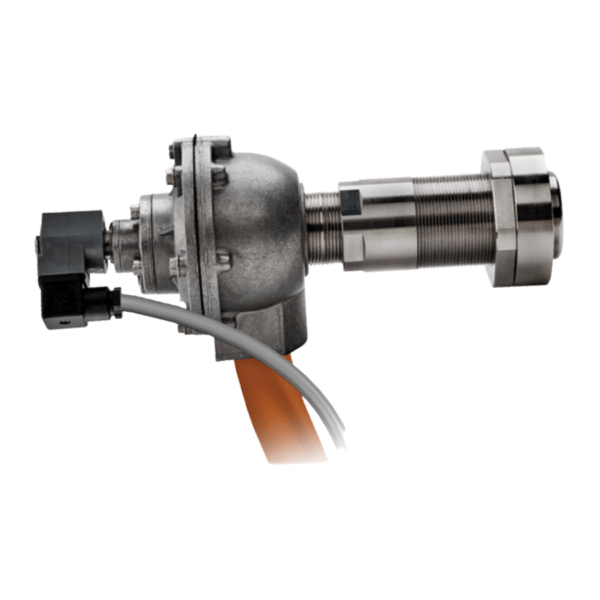

AIRSWEEP – MODEL VA-51 2″

Activates 6-8 feet diameter of material
Ideal for large bins, silos, hoppers, chutes, mixers, and other vessels and equipment

view product download catalog

Ordering Code	Description	Thread	Material
A6-LN-51-CS	AirSweep Lock Nut for VA-51	BSP 2"	Carbon Steel
A6-LN-51-CS-T	AirSweepMounting Coupling for VA-51	-	Carbon Steel
A6-VA-51-CS-BSP-TB	AirSweep for VA-51	BSP 2"	Carbon Steel
