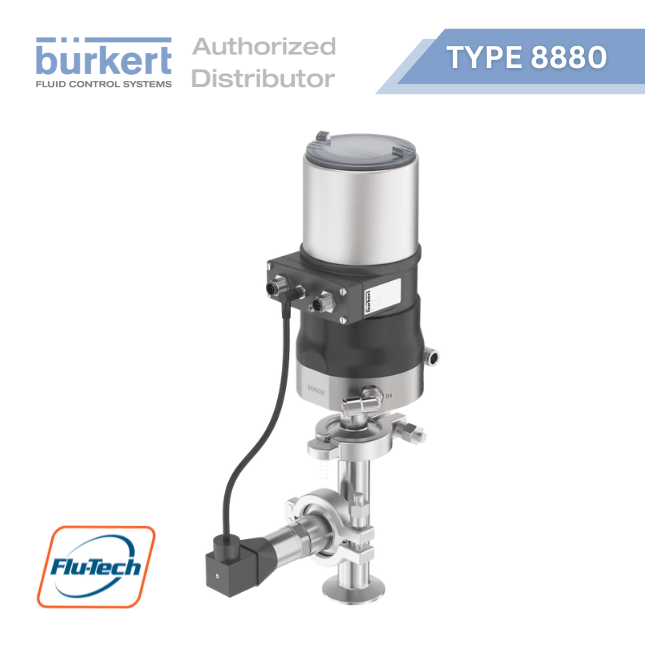

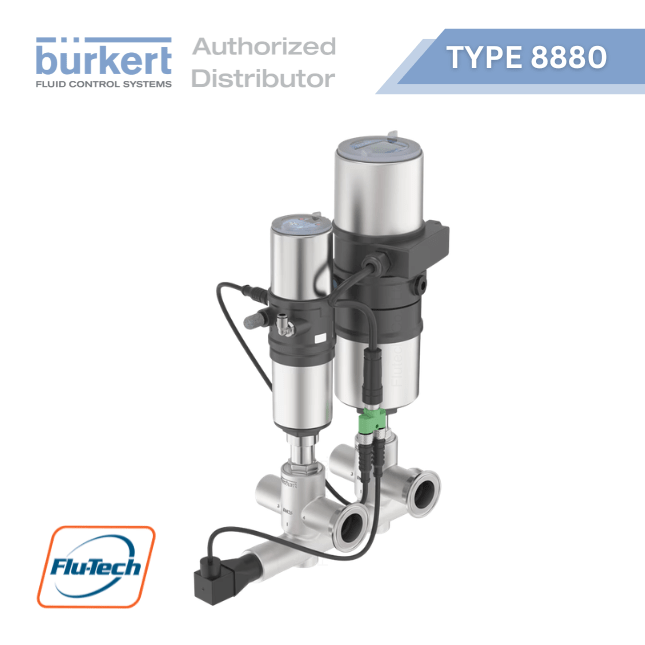

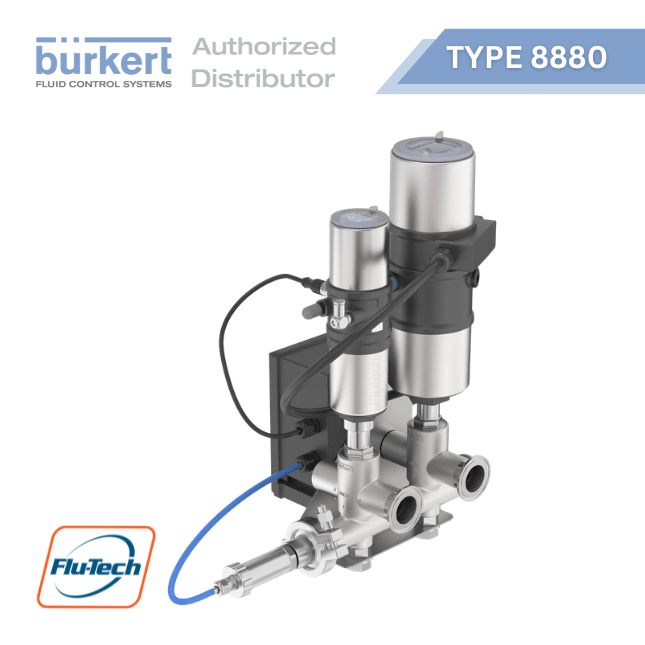

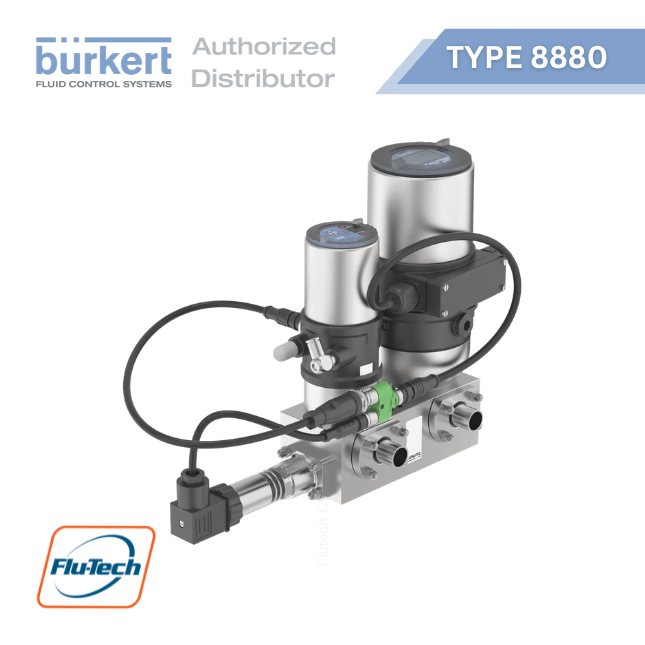

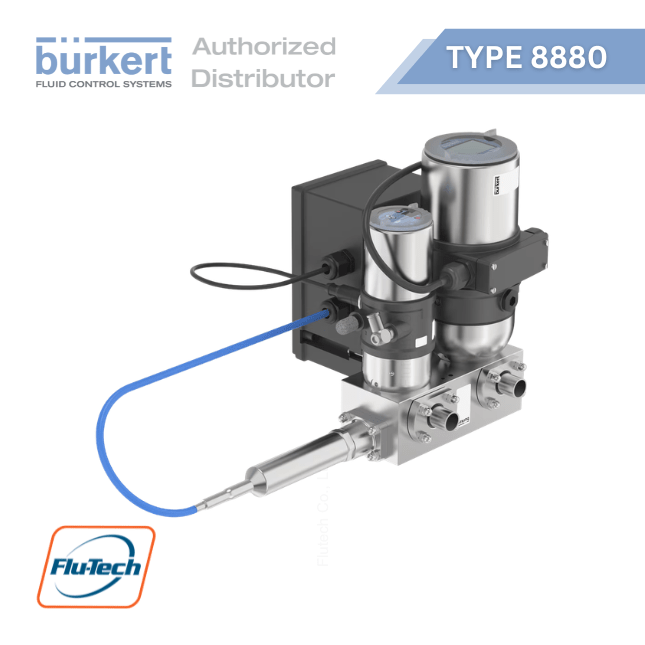

Type 8880 – Modular Tank Pressure Controller
The Bürkert pressure control system for containers is ideal for maintaining a defined pressure in containers containing air, nitrogen or other gases to protect the product in closed processes and especially in hygienic applications. Application examples: Gassing (inerting with gas), control of fermentation processes, transport of special media (time-pressure filling, buffer container) and much more. Two control valves work in combination with a pressure transmitter in a closed control loop. The goal is to maintain a constant pressure in the containers during filling and emptying or during fermentation processes.
จุดเด่น (Product Highlights):
- Various variants available for different hygiene requirements (self-draining, CIP and SIP capable, electropolished surface, FDA, dead space reduced)
- Flexible for different process conditions
- Automatic stand-alone solution
- Permanent process monitoring
- Fast cleaning
ข้อมูลทางเทคนิค (General Technical Data):
| Product Properties |
Block Solution(8880-PB) |
Block Solution(8880-PT) |
Welded Solution(8880-PW) |

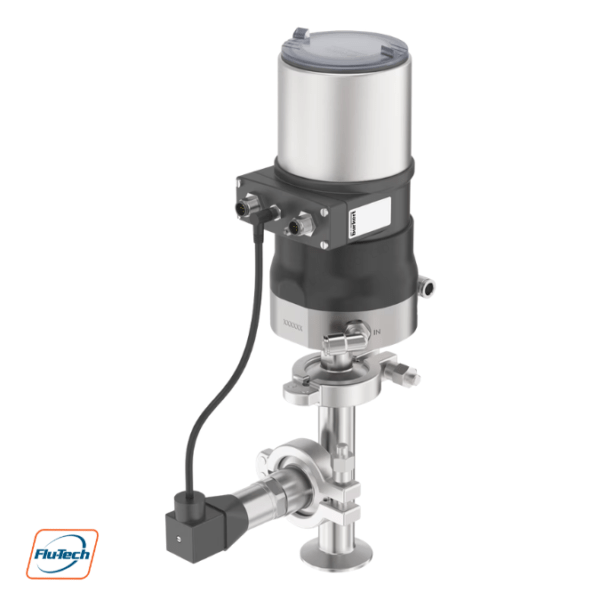

Solenoid Solution(8880-PS) |
| Description |
|
|
|
|
|
Dimensions |
Further information can be found in chapter “5. Dimensions” on page 7. | |||
| Valve Type | Hygienic bellows control valve (diaphragm valve on request) | Globe control valve | Solenoid valve with media separation | |
| Seat Size | 1.5…20 (further sizes on request) | 3…25 (further sizes on request) | 1.4…4 | |
|
KVS Values
|
0.05…6.2 m3/h | 0.05…6.2 m3/h | 0.1…12 m3/h | 0.055…0.330 m3/h |
| Safety Setting in case of Power Failure | Further information can be found in chapter “2. Control functions and circuit functions” on page 4. |
– | – | – |
Performance Data |
||||
| Operating Pressure (further pressure on request) | 0…6 bar(g) |
0…6 bar(g)
|
0…25 bar(g)
|
0…16 bar(g) (depending on nominal diameter)
|
| Pilot Pressure |
5.5…7 bar
|
5.5…7 bar
|
5.5…7 bar
|
Electric solenoid drive
|
Electrical Data |
||||
| Operating Voltage | 24 V/DC ± 10 % | |||
| Residual Ripple | 10 %, no technical direct current | |||
| Power Consumption |
< 10 W
|
< 10 W
|
< 10 W
|
< 15 W
|
|
Set-Point Value Signal
|
0/4…20 mA or 0…5/10 V | |||
| Actual Value Signal | 4…20 mA | |||
| Analogue Feedback | 0/4…20 mA or 0…5/10 V | |||
Medium Data |
||||
| Operating Medium | Air, nitrogen, CO2 and other neutral gases | |||
| Medium Temperature |
– 20 °C…70 °C |
– 20 °C…70 °C |
– 10 °C…+ 100 °C (steam sterilisation on request) |
0 °C…+ 50 °C |
| Control Medium |
Air, neutral gases
|
Air, neutral gases
|
Air, neutral gases
|
Not necessary
|
Product Connections |
||||
| Welded Connection | Sizes on request | |||
| Clamp Connection | Sizes on request | |||
| Flange Connection | Sizes on request | |||
| Threaded Connection | Sizes on request | |||
| Electrical Connection | 1 x cable gland M16 × 1.5 (cable Ø 5…10 mm) with connection terminals for cable cross sections 0.14…1.5 mm2 | |||
| Pilot Air Port |
Thread G 1⁄8
|
Thread G 1⁄8
|
Thread G 1⁄8
|
Not necessary
|
Approvals and Conformities |
||||
| Degree of Protection | IP65/IP67 according to EN60529, 4X according to NEMA 250 Standard | IP65 | ||
| Explosion Protection |
Further information can be found in chapter “3.4. Explosion protection” on page 5.
|
|||
Environment and Installation |
||||
| Ambient Temperature |
– 10…+ 55 °C |
|||
| Installation Position | Any, preferably with tank connection downwards | |||
| Service Interface | Connection with PC via USB port | |||
สามารถใช้ร่วมกับ (Can be combined with):
-
Burkert - Type 2380 - 2/2 Way Bellow Control Valve
-
BURKERT - TYPE 2301 Pneumatically operated 2 way Globe Control Valve
-
BURKERT - TYPE 8693 Digital Electro Pneumatic Positioner
-
BURKERT - TYPE 8696 Digital Electro Pneumatic Positioner for Integrated Mounting on Process Control Valves
-
Burkert - Type 8325 - Pressure Transmitter for General Applications, 0…25 bar
