Burkert-Type-8325-Pressure-Transmitter-for-General-Applications-0…25-bar

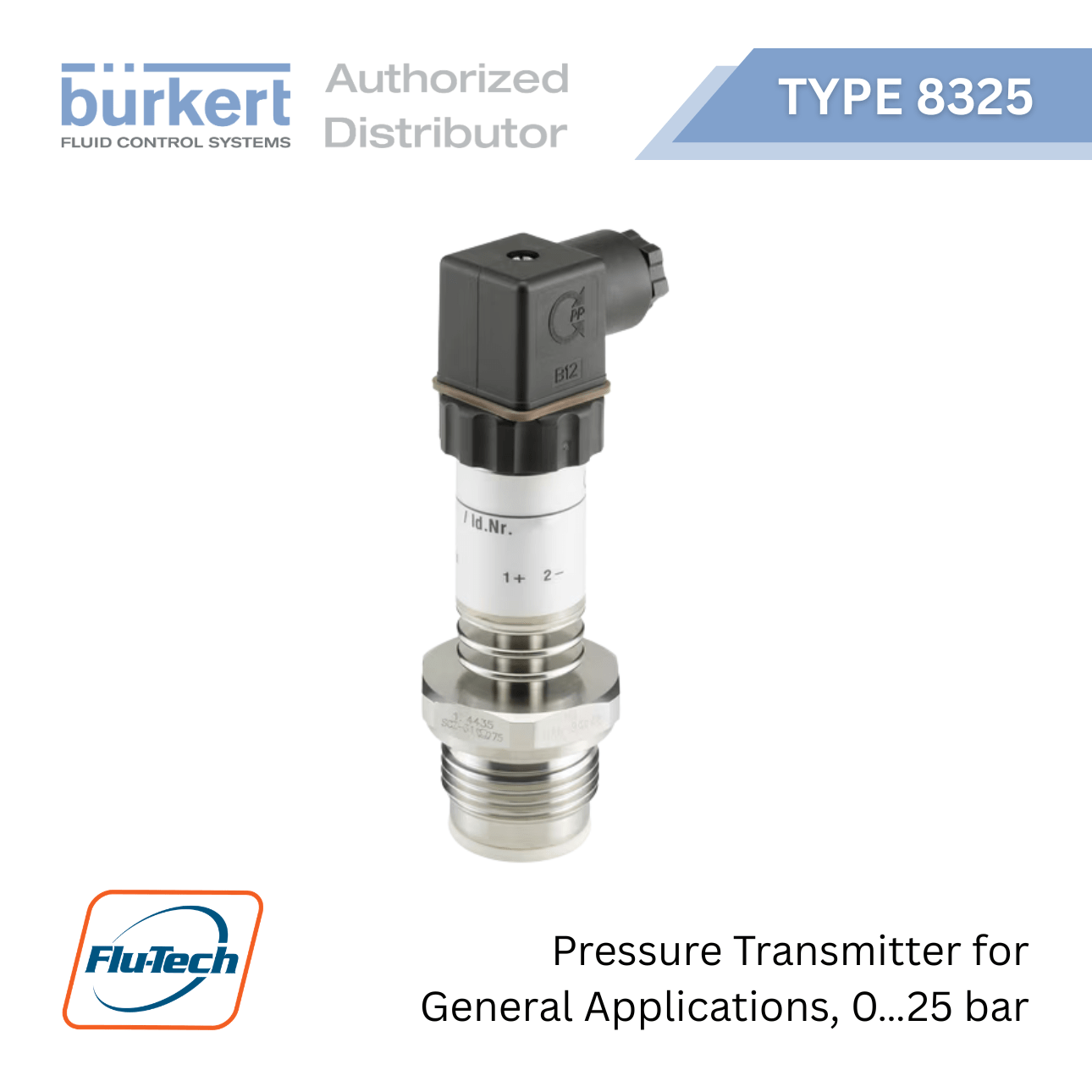

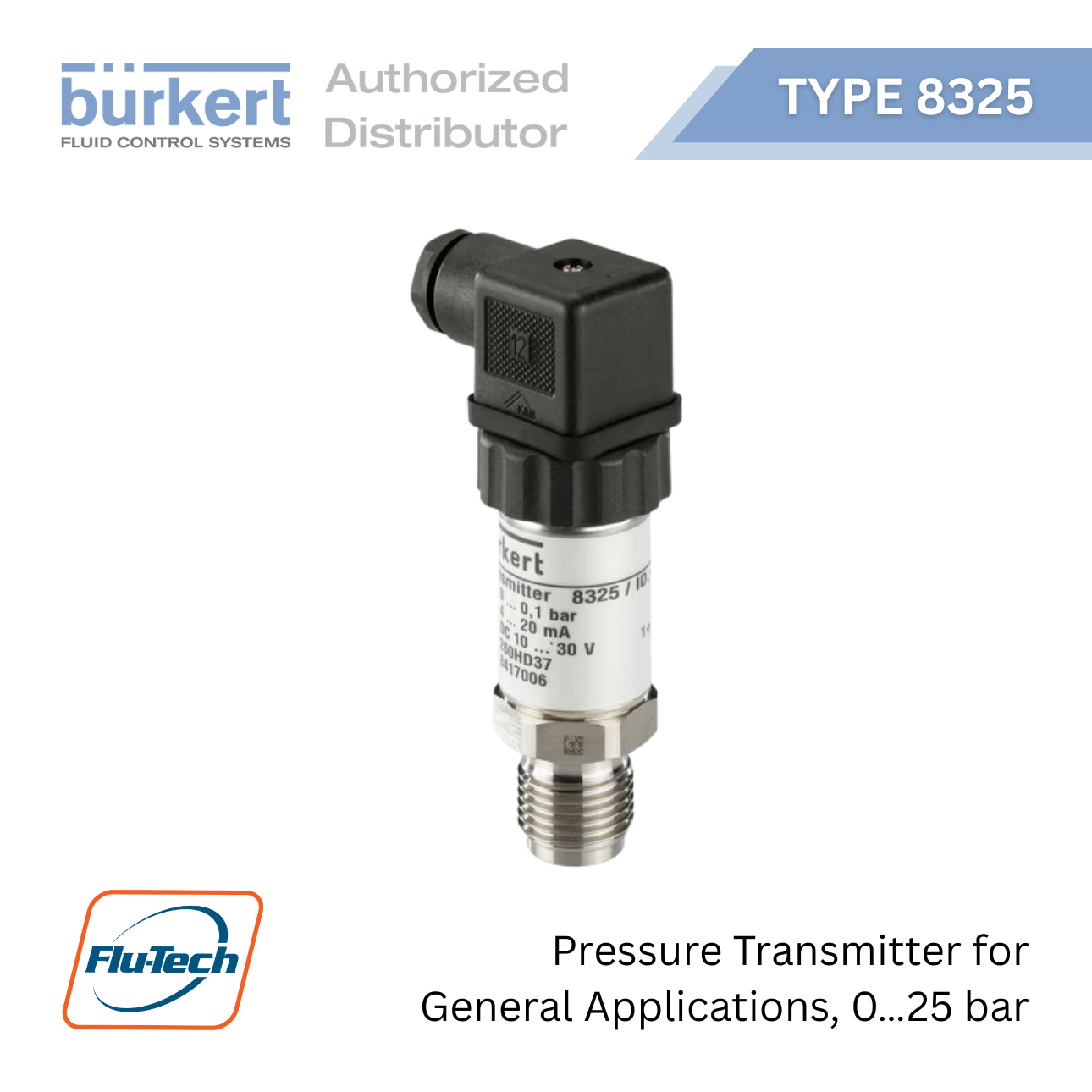

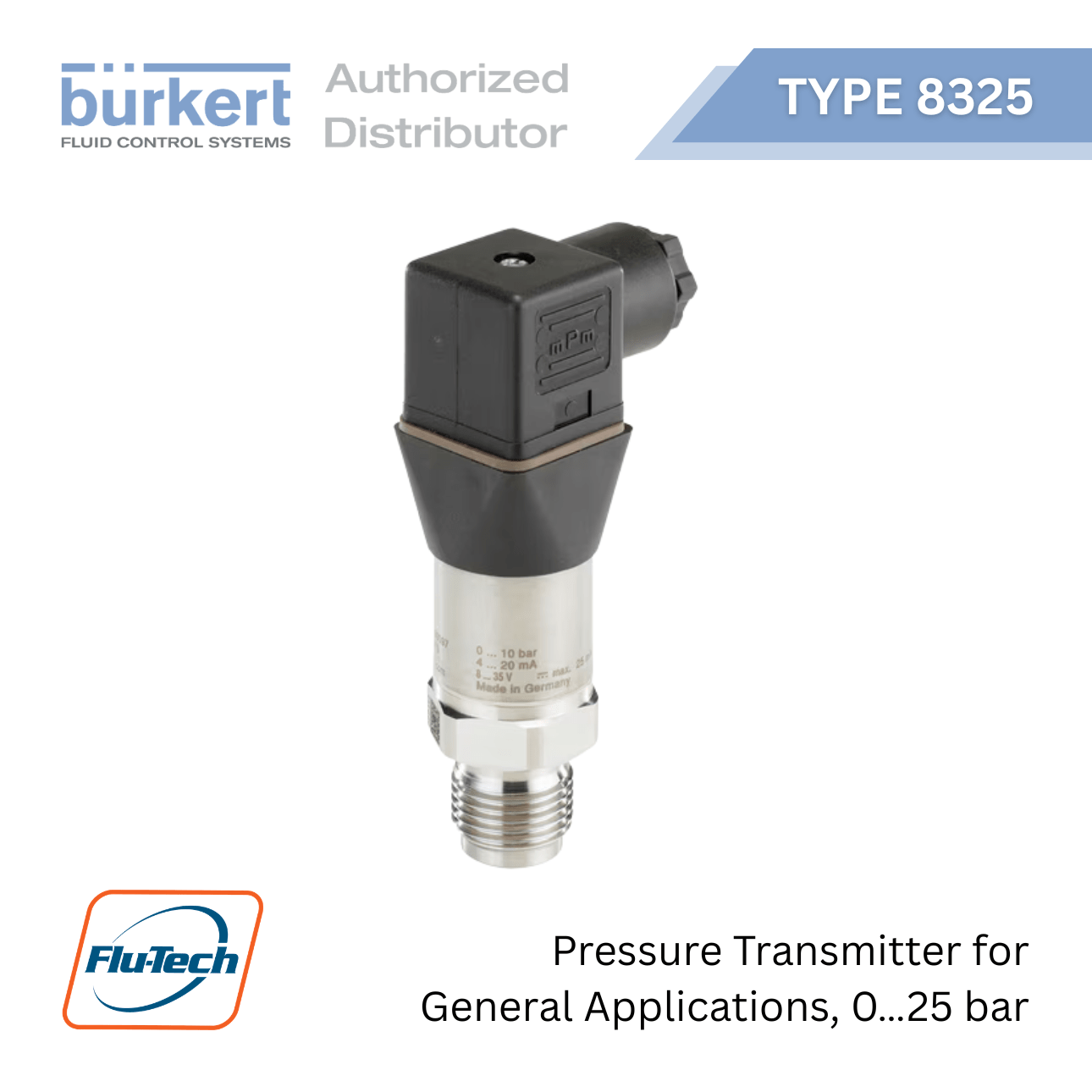

Burkert – Type 8325 – Pressure Transmitter for General Applications, 0…25 bar

จุดเด่นของ Type 8325

  • Many pressure ranges available
  • Plug for quick installation and service
  • Available with hygienic flush-mounted diaphragm
  • Housing and wetted parts in corrosion-resistant stainless steel
  • Standard signal 4…20 mA for connection to automation systems
Send Email LINE OA
หมวดหมู่: ,

Pressure transmitter for general applications, 0…25 bar

This pressure transmitter is designed to cover the majority of industrial applications in the field of pressure measurement technology. High accuracy, compact design, robust construction and flexibility make the transmitter suitable for various measurement tasks. All wetted parts are made of stainless steel and completely welded. Internal seal elements, which restrict the choice of measuring materials, are excluded. Many other pressure ranges available, 0.125 % accuracy, other output signals, other electrical connections, other process connections, on request.

DOWNLOAD CATALOG (ดาวน์โหลดแคตตาล็อก)

type 8325

BURKERT TYPE 8325 สามารถใช้ได้ร่วมกับ

General Technical Data

Product properties
Material
Non wetted parts
Housing of the standard version ≥ 0.4 bar or with flush diaphragm version Stainless steel 1.4571 (316Ti)
Wetted parts
Standard version < 0.4 bar
Standard version ≥ 0.4 bar		 Stainless steel 1.4571 (316Ti)
Stainless steel 1.4404 (316L) (for ≤ 10 bar (150 PSI)) Stainless steel 1.4534 (13-8 PH) (for > 10 bar (150 PSI))
Standard flush diaphragm version
Hygienic flush diaphragm version		 Stainless steel 1.4571 (316Ti), FKM seal
Stainless steel 1.4404 (316L), EPDM seal
Dimensions Detailed information can be found in chapter “3. Dimensions” on page 5.
Internal transmitting liquid Synthetic Oil (for Standard version with pressure range < 10 bar (150 PSI) and for all flush diaphragm units)
Measuring range (Pressure reference = relative pressure [atmospheric]) • 0…0.1; 0.16; 0.25; 0.4; 0.6; 1.0; 1.6; 2.5; 4.0; 6.0; 10.0; 16.0 or 25.0 bar
• 0…10; 15; 25; 60; 100; 150; 250; 400 PSI
Compensated T° range 0…+ 80 °C (+ 32…+ 176 °F)
Product accessories
Welding socket for pressure transmitter • Standard flush diaphragm version: G ½” B or G 1″ B
• Hygienic flush diaphragm version: G 1″ B (hygienic)
Detailed information can be found in chapter “4. Product accessories” on page 8.

*For selecting thecorrect product please refer to the technical data, images and notes for proper use according to the data sheet, or contact Flu-Tech directly.
