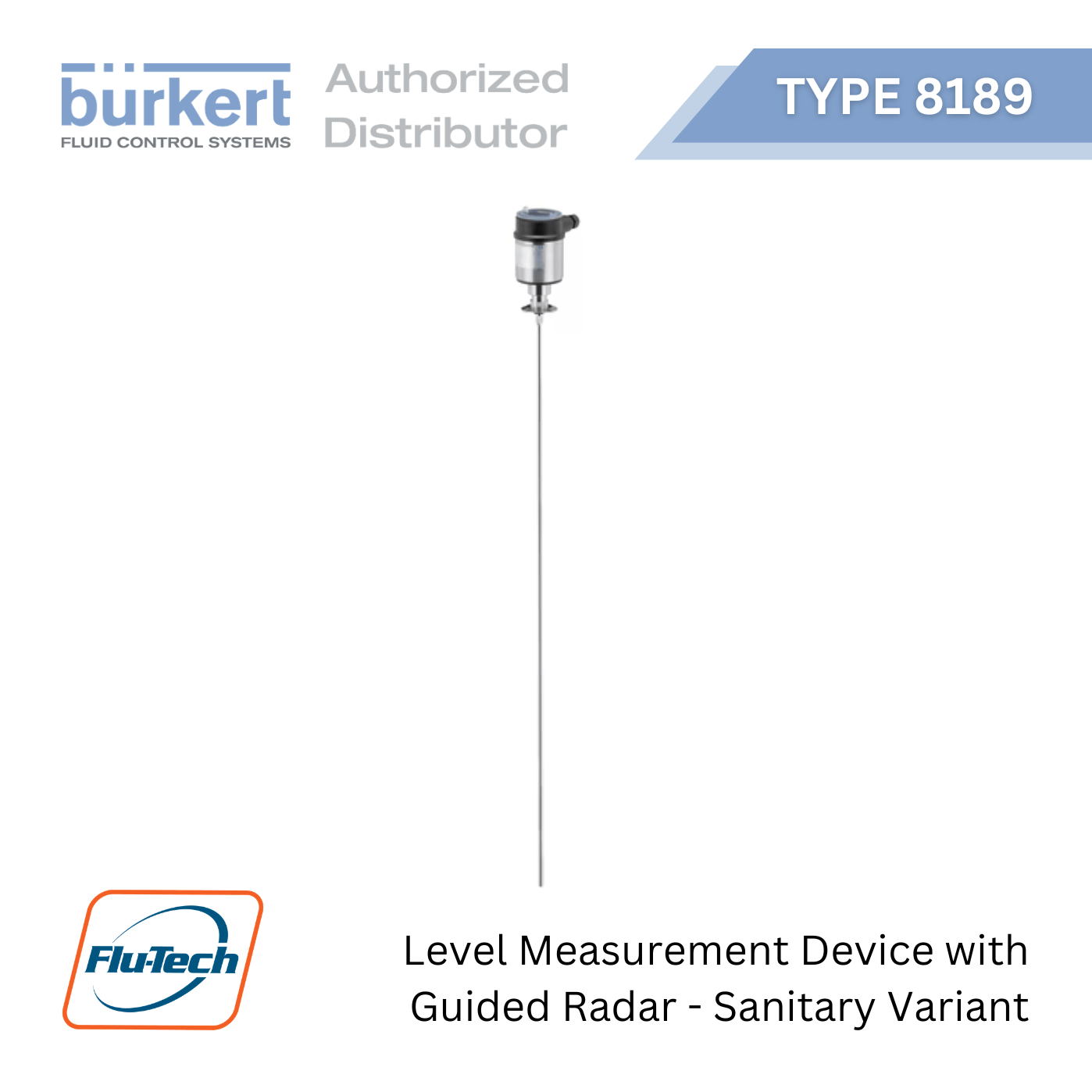

Burkert – Type 8189 – Level Measurement Device with Guided Radar Sanitary Version

 Level Measurement Device with Guided Radar Sanitary Version

The Type 8189 is a level measurement device with interchangeable rod probe, designed for continuous level measurement. The unit is suitable for liquids, for industrial use in all areas of process technology. But the main application targets are in Food and Beverage (F&B) and pharmaceutical tanks to the new rod in stainless steel 1.4435 with Ra < 0.76 µm. For applications with corrosive liquids a PFA coated version is available. Even process conditions such as strong steam generation, density fluctuations or changes of the dielectric constant do not influence the accuracy of the measurement. Build-up or condensation on the probe or vessel wall does not influence the measurement result.

type 8189

General Technical Data

Product properties
Materials	Please make sure the device materials are compatible with the fluid you are using. Detailed information can be found in chapter “3.1. Chemical Resistance Chart – Bürkert resistApp” on page 5.
Non wetted parts
Housing	Plastic PBT (Polyester) and stainless steel 316L (1.4404)
Cover	PC transparent
Seal between housing and housing cover	EPDM
Cable gland	PA
Blind plug	PA
Ground terminal	Stainless steel 316L
Wetted parts	Depending on the device version. Detailed information can be found in chapter “2. Product versions” on page 5
Process connection	Stainless steel 316L (1.4404 or 1.4435) and PEEK
Process seal	EPDM
Rod-Ø 8 mm	Stainless steel 316L (1.4435), polished
Dimensions	Detailed information can be found in chapter “5. Dimensions” on page 7.
Weights	• Housing: 890 g • Rod-Ø 8 mm: approx. 400 g/m
Surface quality	Rod: Ra ≤ 0.76 µm (with low delta ferrite content)
Probe length	0.3…4 m (lateral load: 10 Nm)
Measuring variable	Level of liquids
Measuring range	0.08…4 m Detailed information can be found in chapter “5.1. Measuring range and blocking distance diagram” on page 8.
Damping (63 % of the input value)	0…999 s, adjustable
Step response time2.)	≤ 3 s
Product accessories Display	LCD in full dot matrix. Detailed information can be found in chapter “7.4. Ordering chart accessories” on page 11.
Performance data
Blocking distance	• In water: – from top of probe: 80 mm – from bottom of probe: 0 mm • In oil – from top of probe: 150 mm – from bottom of probe: 100 mm
Measurement deviation	According to DIN EN 60770-1: ± 2 mm Detailed information can be found in chapter “5.2. Measurement deviation diagram” on page 8.
Measuring range resolution	1 mm
Measuring cycle time2.)	< 500 ms
Temperature drift	• Digital output: ± 3 mm/10 K, max. 10 mm • Current output: < 0.03 %/10K relating to the 16 mA span or ≤ 0.3 %
Max. filling/emptying speed	1 m/min (products with high dielectric constant (> 10) up to 5 m/min.)
Repeatability4.)	≤ 1 mm
Vibration resistance	1 g with 5…200 Hz according to EN 60068-2-6 (vibration at resonance) with rod length 50 cm
Shock resistance	25 g, 6 ms according to EN 60068-2-27 (mechanical shock) with rod length 50 cm
Electrical data
Operating voltage (Un)	• Without display/configuration module: – 9.6…35 V DC – 9.6…30 V DC (Ex ia instrument) • With display/configuration module: – 16…35 V DC – 16…30 V DC (Ex ia instrument)
Power Source (not supplied)	Limited power source according to UL/EN 60950-1 standards or limited energy circuit according to UL/EN 61010-1 §9.4
Starting current	≤ 3.6 mA; ≤ 10 mA for 5 ms after switching on
DC reverse polarity protection	Yes
Output signal	4…20 mA/HART
Signal resolution	0.3 µA
Range of the output signal	3.8…20.5 mA/HART (default setting)
Load resistor	(Un – Umin.)/0.022 A
Fault signal	Current output: mA value unchanged, 20.5 mA, 22 mA or < 3.6 mA (adjustable)
Max. output current	21.5 mA
Residual ripple (at DC)	• For 9.6 V < Un < 18 V: ≤ 0.7 Veff (16…400 Hz) • For 18 V < Un < 35 V: ≤ 1.0 Veff (16…400 Hz)
Voltage supply cable	• Cable diameter: 5…9 mm • Wire cross-section (spring-loaded terminals): – massive wire, stranded wire: 0.2…2.5 mm2 (AWG 24…14) – stranded wire with end sleeve: 0.2…1.5 mm2 (AWG 24…16)
Medium data
Process temperature	– 20…+ 130 °C (- 4…+ 266 °F) (for sterilisation process: up to + 150 °C (+ 302 °F) for max. 120 min)
Process pressure	Vessel pressure: – 1…16 bar (- 14.51…232.16 PSI/- 100…1600 kPa)
Dielectric constant (min.)	εr > 1.6
Process/Port connection & communication
Process connection	• Clamp 2″ • DIN 11851 DN 50
Electrical connection	Cable glands M20 x 1.5
Approvals and Certificates
Standards Degree of protection according to  IEC/EN 60529	IP66/IP67 with cable plug mounted and tightened M20 x 1.5
Overvoltage category according to IEC 61010-1	Category III
Protection class according to IEC 61010-1	Class III
Directives
CE directives	The applied standards, which verify conformity with the EU Directives, can be found on the EU Type Examination Certificate and/or the EU Declaration of conformity (if applicable)
NAMUR recommendations	NE21- Electromagnetic compatibility of equipment NE43 – Signal level for fault information from measuring transducers NE53 – Compatibility of field devices and display/adjustment components NE107 – Self-monitoring and diagnosis of field devices
Certificate	FDA declaration of conformity. Detailed information can be found in chapter “2.2. Certificates” on page 5.
Approvals
ATEX/IECEx	EN IEC 60079-0, EN 60079-11, EN 60079-26 Detailed information can be found in chapter “2.1. Certifications” on page 5.
Environment and installation
Ambient temperature	Operation and storage: – 40…+ 80 °C (- 40…+ 176 °F) (with display/configuration module)
Temperature derating	Detailed information can be found in chapter “5.3. Temperature derating diagram” on page 9



*For selecting thecorrect product please refer to the technical data, images and notes for proper use according to the data sheet, or contact Flu-Tech directly.
