Description

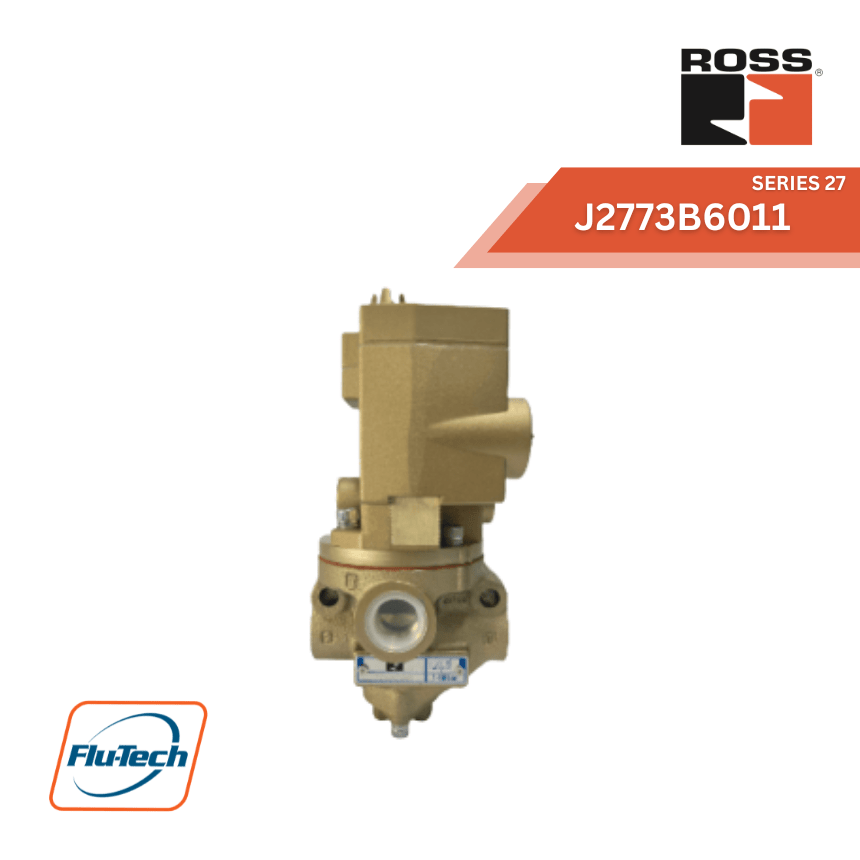

27 Series, 3/2 Single Solenoid Controlled, Spring Return, Normally Closed, 1″ In-Out,1-1/2″ Exhaust BSPP 24 VDC, J2773B6011
The fieldbus suitable for J2773B6011 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.
Directional Control Function
Directional control valves function is to control the direction of flow in the pneumatic circuit. These valves can regulate the airflow being capable to stop fluid flow, allow fluid flow, and change the direction of fluid flow. These three functions usually operate in combination.
Specifications
| DESCRIPTION | 27 Series, 3/2 Single Solenoid Controlled, Spring Return, Normally Closed, 1″ In-Out,1-1/2″ Exhaust BSPP 24 VDC |
| CV (IN-OUT) | 23 |
| CV (EXHAUST) | 34 |
| PORT SIZE (IN-OUT) | 1 |
| PORT SIZE (EXHAUST) | 1-1/2 |
| ACTUATION | Solenoid Controlled |
| FUNCTION | 3/2 Single |
| VOLTAGE | 24 VDC |
| RETURN TYPE | Spring |
| DEFAULT POSITION | Normally Closed |
| MANUAL OVERRIDE | Non-locking |
| CONNECTOR TYPE | Hard wired (1/2 inch conduit) |
| PORT THREAD | BSPP |
| BASIC SIZE | 1-1/4 |
| ADAPTER | – |
| CONSTRUCTION | Poppet |
| MOUNTING | Inline |
| CERTIFICATIONS | SIL |
| FLOW MEDIA | Filtered Air |
| INLET PRESSURE RANGE | 15 TO 150 PSIG (1 TO 10 BAR) |
| MEDIA TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
| AMBIENT TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
| WEIGHT | 7.0 lbs (3.18 kg) |
