Description

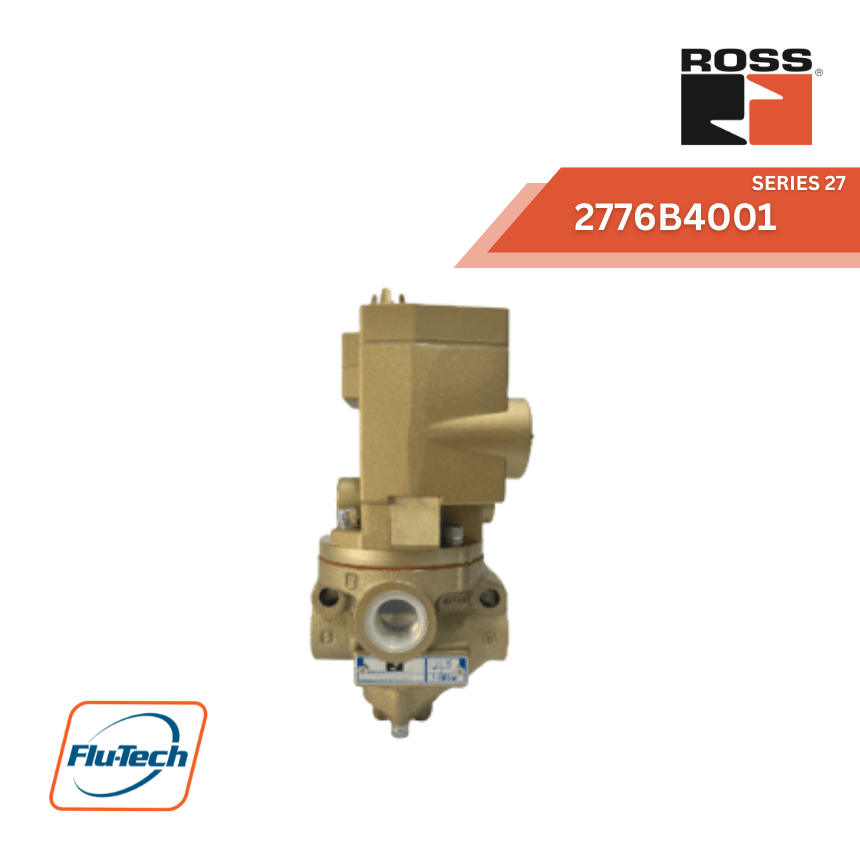

27 Series, 4/2 Single Solenoid Controlled, Spring Return, 1/2″ In-Out,1″ Exhaust BSPP 24 VDC, 2776B4001
The fieldbus suitable for 2776B4001 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.
Directional Control Function
Directional control valves function is to control the direction of flow in the pneumatic circuit. These valves can regulate the airflow being capable to stop fluid flow, allow fluid flow, and change the direction of fluid flow. These three functions usually operate in combination.
Features
Specifications
| DESCRIPTION | 27 Series, 4/2 Single Solenoid Controlled, Spring Return, 1/2″ In-Out,1″ Exhaust BSPP 24 VDC |
| CV (EXHAUST) | 8.1 |
| CV (IN-OUT) | 5.6 |
| FUNCTION | 4/2 Single |
| ACTUATION | Solenoid Controlled |
| PORT SIZE (IN-OUT) | 1/2 |
| PORT SIZE (EXHAUST) | 1 |
| BASIC SIZE | 3/4 |
| VOLTAGE | 24 VDC |
| RETURN TYPE | Spring |
| MANUAL OVERRIDE | Non-locking |
| CONNECTOR TYPE | Hard wired (1/2 inch conduit) |
| DEFAULT POSITION | – |
| PORT THREAD | BSPP |
| ADAPTER | – |
| CONSTRUCTION | Poppet |
| MOUNTING | Inline |
| CERTIFICATIONS | SIL |
| FLOW MEDIA | Filtered Air |
| INLET PRESSURE RANGE | 15 TO 150 PSIG (1 TO 10 BAR) |
| MEDIA TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
| AMBIENT TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
| WEIGHT | 5.3 lbs (2.4 kg) |
