Description

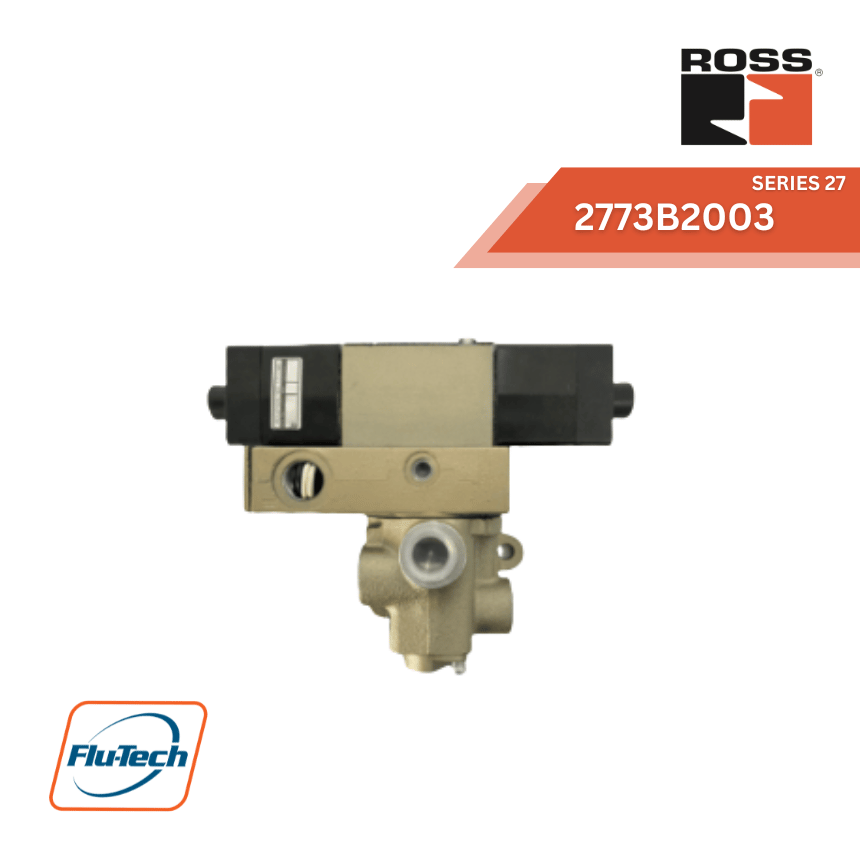

27 Series, 3/2 Double Direct Solenoid Controlled, Detented, Normally Closed, 1/4″ In-Out,1/2″ Exhaust NPT 24 VDC, 2773B2003
The fieldbus suitable for 2773B2003 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.
Directional Control Function
Directional control valves function is to control the direction of flow in the pneumatic circuit. These valves can regulate the airflow being capable to stop fluid flow, allow fluid flow, and change the direction of fluid flow. These three functions usually operate in combination.
Specifications
| DESCRIPTION | 27 Series, 3/2 Double Direct Solenoid Controlled, Detented, Normally Closed, 1/4″ In-Out,1/2″ Exhaust NPT 24 VDC |
| BASIC SIZE | 3/8 |
| CV (EXHAUST) | 3.1 |
| FUNCTION | 3/2 Single |
| VOLTAGE | 24 VDC |
| DEFAULT POSITION | Normally Closed |
| PORT SIZE (EXHAUST) | 1/2 |
| PORT THREAD | NPT |
| MANUAL OVERRIDE | Non-locking |
| CONNECTOR TYPE | Hard wired (1/2 inch conduit) |
| RETURN TYPE | Detented |
| ACTUATION | Direct Solenoid Controlled |
| PORT SIZE (IN-OUT) | 1/4 |
| ADAPTER | – |
| CV (IN-OUT) | 2.1 |
| CONSTRUCTION | Poppet |
| MOUNTING | Inline |
| CERTIFICATIONS | SIL |
| FLOW MEDIA | Filtered Air |
| INLET PRESSURE RANGE | 15 TO 150 PSIG (1 TO 10 BAR) |
| MEDIA TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
| AMBIENT TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
| WEIGHT | 3.5 lbs (1.59 kg) |
