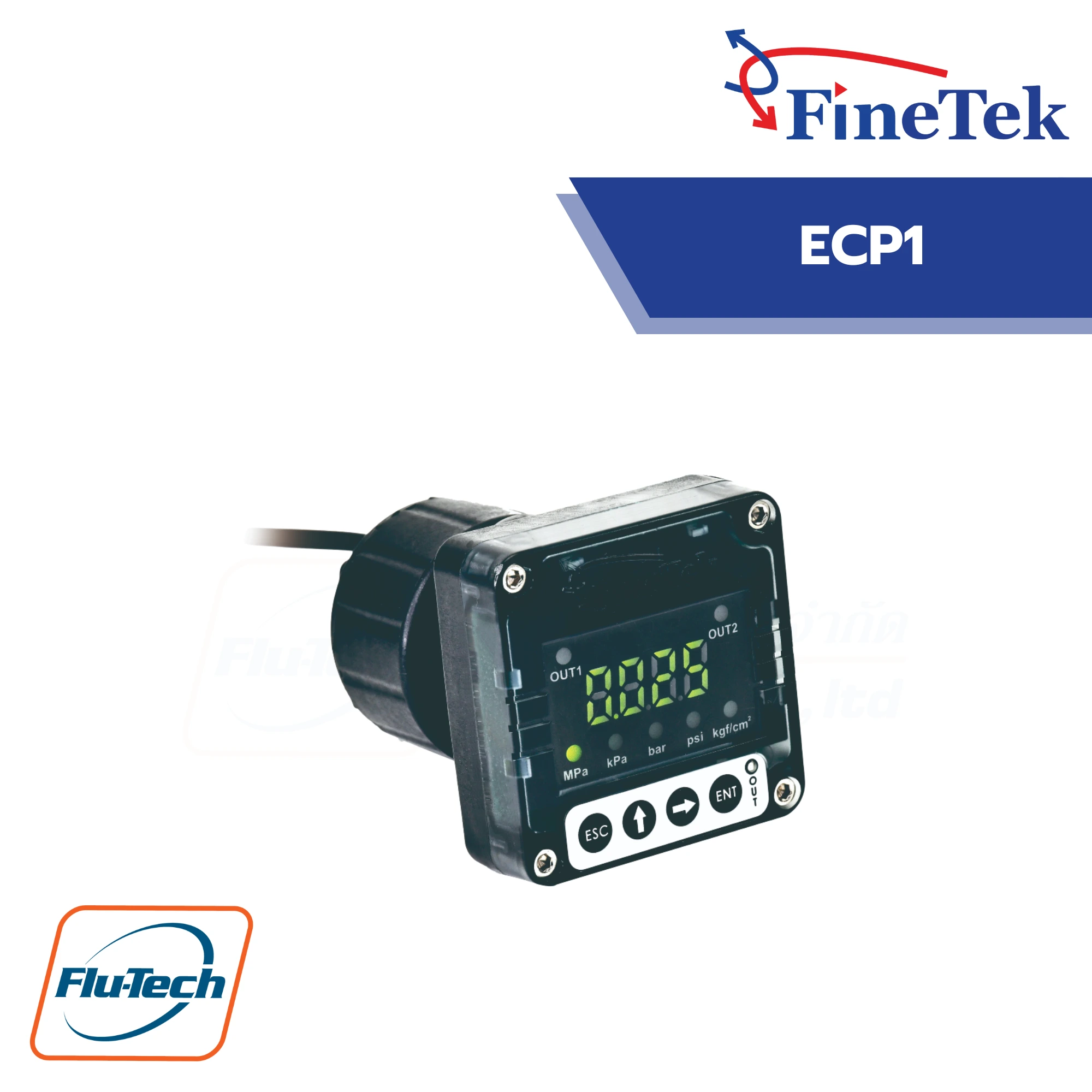

FineTek Pressure Guage รุ่น ECP1
The ECP1 Pressure Gauge by Fine-Tek delivers precise pressure monitoring through its high-sensitivity piezoresistive sensor. As environmental pressure shifts, deformation in the sensor’s thin film causes resistance changes, which are precisely measured via a Wheatstone bridge and amplifier circuit to determine actual pressure.
DOWNLOAD CATALOG (ดาวน์โหลดแคตตาล็อก)
ECP2 SERIESDescription
With the piezoresistive pressure sensor, as soon as changes in environmental pressure are detected, the thin film deformation on the pressure sensor changes too, and the piezoresistive material on the thin film experiences deformation accordingly. The resistance changes as such as well. Such resistance change, once read and processed through the Wheatstone bridge and the amplifier circuit, can be used to measure the size of pressure.
Features
- Dual-color LED and red-text alarm displays
- Analog 4–20 mA output that allows continuous detection of pressure values
- Anti-corrosion structural design that is suitable for minimally corrosive solution
- Quick release mount to facilitate calibration and replacement
- Dual NPN/PNP output that makes pressure control quicker and more convenient
- IO-Link compatibility to make system integration easier
Applications
This product is applied to a modularized pressure meter where air, water, and solution with a pH value are used.
