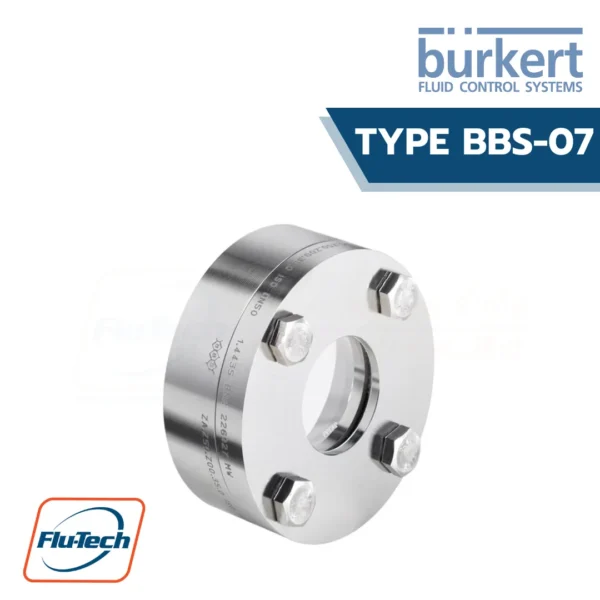

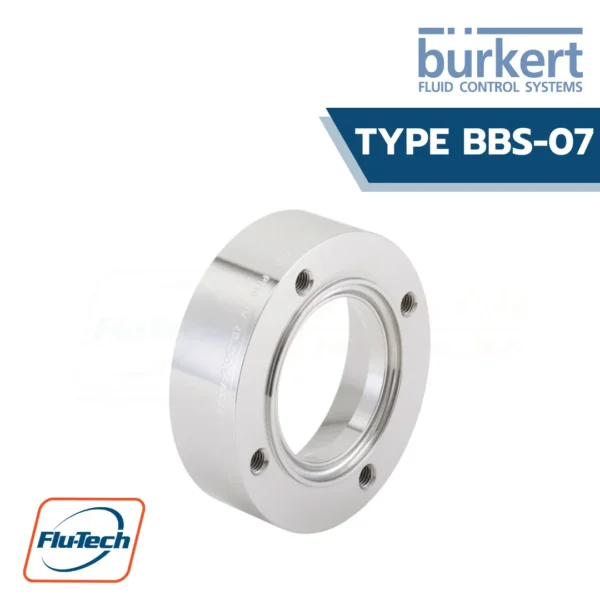

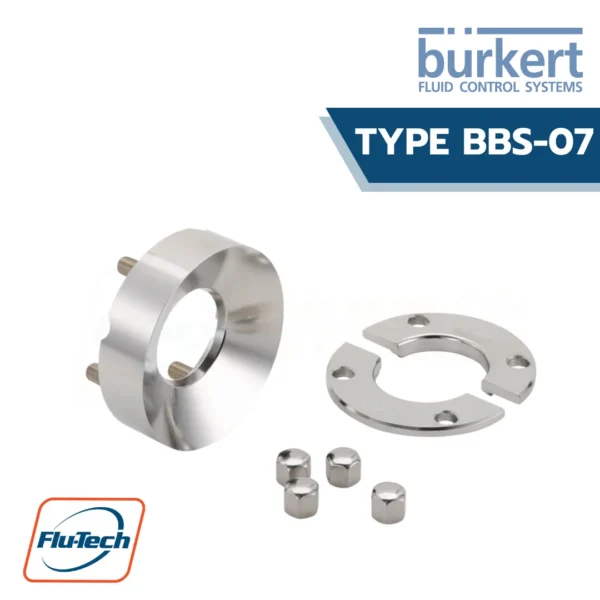

Burkert – Type BBS-07 – Tank flanges for sterile orbital or aseptic flanges. Clamp tank flanges for clamp ferrules or aseptic clamps.

Tank flanges for sterile orbital or aseptic flanges. Clamp tank flanges for clamp ferrules or aseptic clamps.

These Clamp block flanges are suitable for clamp connections according to DIN 32676 and ASME BPE. They are specifically intended to provide a safe and secure flexible connection of pipes or equipment to a tank using standard clamps.

They can be used for connecting measuring instruments, sight glasses or sampling systems as well as burst discs. Their design and construction makes them simple to clean.

type bbs-07

General Technical Data

Technical data
Available standard sizes	ISO DN08 to DN100 DIN DN10 to DN100 BS-OD DN1/2″ to DN4″
Material medium contact	Stainless steel 1.4435 BN2 (316L) Special materials e.g. Hastelloy 2.4602, Titanium, 1.4539 etc. on request
Material medium separated	1.4305 or equivalent
Connection	Loose tank Clamp
Seals	Suitable seals please see datasheet BBS- 25
Surface quality	Medium contacted surface RA < Ra 0.8μm, electro polished, finer surface on request
Ambient temperature	– 20 to + 80 °C
Media	Gases or liquids
Operating pressure	ISO DN08 to DN32 = 25 bar ISO DN40 to DN65 = 16 bar ISO DN80 to DN150 = 10 bar DIN DN04 to DN40 = 25 bar DIN DN50 to DN65 = 16 bar DIN DN80 to DN150 = 10 bar BS-OD DN1/4″ to DN1 ½” = 25 bar BS-OD DN2″ to DN3″ = 16 bar BS-OD DN4″ to DN8″ = 10 bar SMS DN06 to DN40 = 25 bar SMS DN50 to DN65 = 16 bar SMS DN80 to DN100 = 10 bar
Applicable Standards	Clamp shape acc. to DIN 32676 ISO-Dimensions Series B DIN-Dimensions Series A BS-OD-Dimensions Series C (ASME BPE)
Certifications	Material 3.1
