Multifunction Block Solution

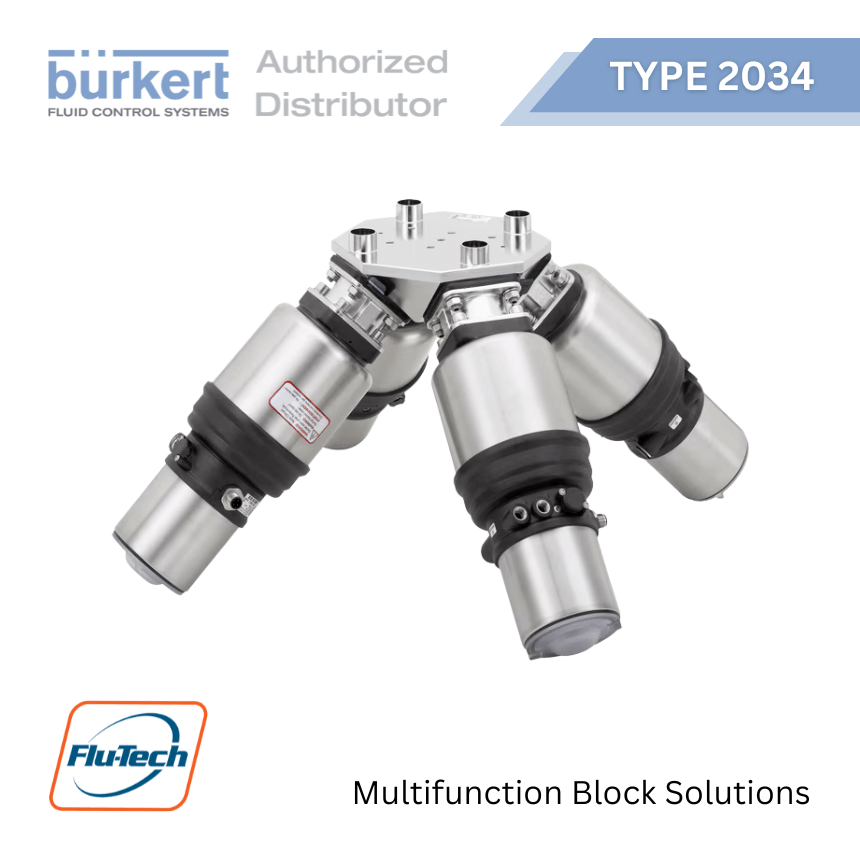

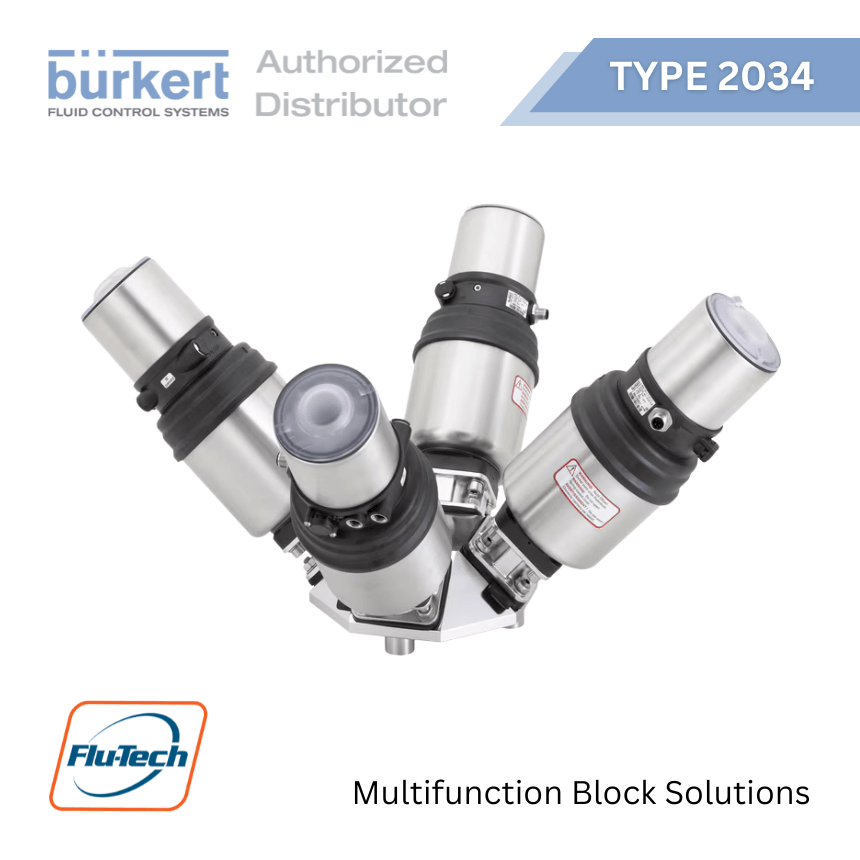

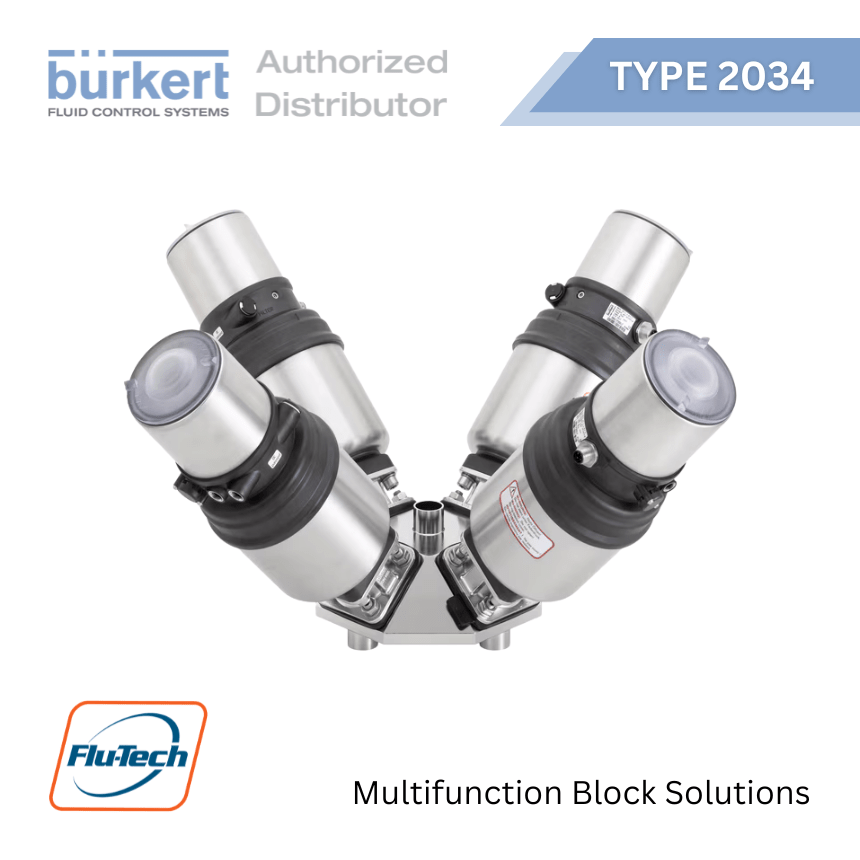

The Bürkert multifunction block solution Type 2034 configurations are designed for the control of ultrapure, sterile, aggressive or abrasive fluids. They are designed to be fully drainable and can be operated by either pneumatic actuator or manual handwheel. Available accessories include Positioner/PID controllers, stroke limiters, electrical feedback, pneumatic pilot valves.
DOWNLOAD CATALOG (ดาวน์โหลดแคตตาล็อก)
BURKERT TYPE 2034 สามารถใช้ได้ร่วมกับ
-
Burkert - Type 8691 Control Head for Decentralized Automation of Process Valves (Type ELEMENT)
-
Burkert - Type 8686 - Control and Feedback Head for Integrated Mounting on Robolux Valves Type 2036
-
BURKERT - TYPE 8690 Pneumatic control unit for decentralized automation of process valves ELEMENT
-
Burkert - Type 8685 - Control and Feedback Head for Integrated Mounting on Robolux Valves Type 2036
-
BURKERT - TYPE 8692 Digital Electropneumatic Positioner for Integrated Mounting on Process Control Valves
General Technical Data
Product Properties |
|
| Body material |
Stainless steel 1.4435/316L (VH) / Stainless steel 1.4435 acc. to BN2/ASME BPE, Fe <0.5% (VI) / Others on request
|
| Diaphragm material |
EPDM (AD), PTFE/EPDM (EA), advanced PTFE/EPDM (EU), Gylon®/EPDM laminated (ER), advanced PTFE/EPDM laminated (EK)
|
|
ELEMENT (Type 2103)
|
PPS, cover in stainless steel 1.4561/316Ti, socle in stainless steel 1.4308
|
| CLASSIC (Type 2031) | PPS, PA, socle in stainless steel 1.4308 |
|
Stainless steel/INOX (Type 2063)
|
Stainless steel 1.4404, socle in stainless steel 1.4308 |
| Robolux (Type 2036) |
1.4308 stainless steel (CF8)
|
| Manual (Type 3233) | PPS/PPS, PPS/stainless steel (DN65, 80, 100 in stainless steel/stainless steel) |
|
Nominal diameter
|
DN08…DN100
|
|
Internal mechanically polished standard surface quality
|
Ra ≤ 0.5 μm (ASME BPE SF1) (NO14)
|
| Internal electrically polished standard surface quality | Ra ≤ 0.38 μm (ASME BPE SF4/DIN HE4) (NO17) |
| Automated components standard surface quality | Position feedback/control head/positioner/process controller |
Performance Data |
|
|
Pilot pressure (max.)
|
See “5.1. Medium pressure” on page 10 |
| Pilot air ports | Push-in connector Ø 6 mm/4 mm or 1⁄4″; thread G 1⁄8″/G 1⁄4″ |
Medium Data |
|
|
Medium
|
Neutral gases and fluids, highly purified, sterile, aggressive or abrasive medium
|
|
EPDM (AD) medium temperature
|
– 10…+ 143 °C (steam sterilisation + 150 °C for 60 min)
|
| PTFE/EPDM (EA) medium temperature |
– 10…+ 130 °C (steam sterilisation + 140 °C for 60 min)
|
| Advanced PTFE/EPDM (EU) medium temperature |
– 5…+ 143 °C (steam sterilisation + 150 °C for 60 min)
|
| GYLON®/EPDM laminated (ER) medium temperature |
– 5…+ 130 °C (steam sterilisation + 140 °C for 60 min)
|
|
EPDM (AD) Robolux medium temperature
|
+ 5…+ 130 °C (steam sterilisation + 140 °C for 60 min) |
| Advanced PTFE/EPDM laminated (EK) Robolux medium temperature | + 5…+ 90 °C (not recommended for steam) |
| GYLON®/EPDM laminated (ER) Robolux medium temperature | – 5…+ 130 °C (steam sterilisation + 140 °C for 60 min) |
|
Control medium
|
Neutral gases, air |
Process/Port Connection & Communication |
|
|
Nominal diameter
|
DN06…DN100 (1⁄8″…4″)
|
| Welded port connection |
DIN EN ISO 1127/ISO 4200/DIN 11866 series B, DIN 11850 series 2/DIN 11866 series A/DIN EN 10357 series A, ASME BPE/DIN 11866 series C
|
| Clamp port connection |
DIN 32676 series A (DIN-pipe), DIN 32676 series B (ISO-pipe), ASME BPE
|
Environment and Installation |
|
|
ELEMENT ambient temperature
|
– 10…+ 60 °C
|
|
CLASSIC PPS ≤ 80 mm ambient temperature
|
+ 5…+ 140 °C |
| CLASSIC PPS 100 mm, 125 mm ambient temperature | + 5…+ 90 °C (short-term up to + 140 °C) |
|
CLASSIC PA ≤ 125 mm ambient temperature
|
– 10…+ 60 °C |
|
CLASSIC PA ≥ 175 mm ambient temperature
|
– 10…+ 50 °C |
| Stainless steel/INOX ambient temperature | 0…+ 80 °C |
| Robolux ambient temperature | 0…+ 60 °C |
