PRODUCTS

Technology, international experience and ingenuity: Our products are the outcome of a focused and simultaneously far-sighted business vision which strives to apply flows and processes characterized by efficiency. Custom products are complemented by a varied catalogue of technological solutions​capable of making the difference in every sector of industry:

สอบถามข้อมูลเพิ่มเติม

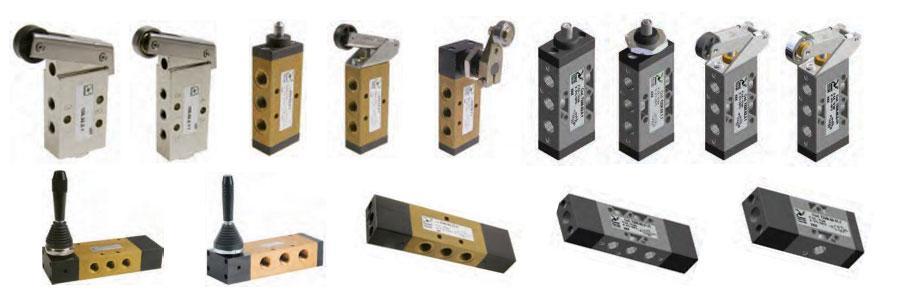

ALL KINDS OF MECHANICAL VALVES | แมคคานิควาล์ว

Function : 3/2, 5/2, 5/3, Size : 1/8″ to 1″

  • Roller valve : ball bearing, bidirection, oneway
  • Tappet-spring return
  • Push button, Palm Push button
  • Fooot Valve : Level lateral, Lever rotating, etc.
  • Switch : switch lateral, lever front, Key switch etc.
  • Etc.

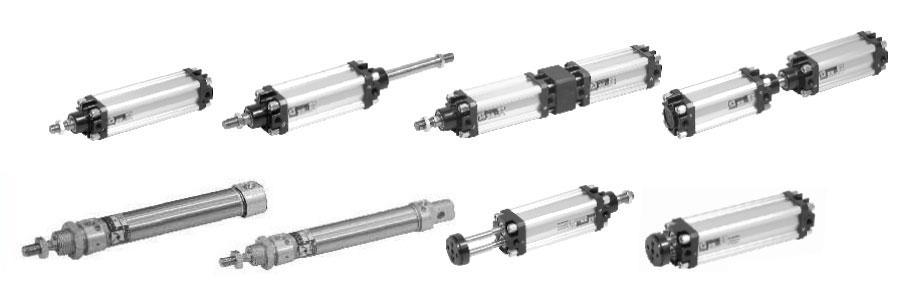

All KINDS OF AIR CYLINDERS | กระบอกลม

  • Standard Micro cylinder ISO6430 Ø 20 to 50 mm.
  • Standard Cylinder ISO6431 Ø 32 to 125 mm.
  • Standard Cylinder CNOMO-CETOP-ISO Ø 32 to 200 mm.
  • Standard Twin rod cylinder Ø 32 to 100 mm.
  • Standard Rotary Actuators 90 ํ , 180 ํ , 270 ํ, 360 ํ Ø 32 to 100 mm.
  • Standard Hydraulic Speed Controller Check : Extraction, Compression, Double regulation
  • Standard Compact cylinder Ø 20 to 100 mm.
  • Standard Rodless cylinder Ø 25 to 63 mm.

1260.Ø.stroke Basic Cylinder
271.Ø.stroke Basic front spring from Ø 12 (max stroke 40 mm)
1272.Ø.stroke Basic rear spring from Ø 12 (max stroke 40 mm)
12- -.Ø.stroke.A Adjustable cushions (from Ø 16)
12- -.Ø.stroke.M Magnetic piston (from Ø 10)
1280.Ø.stroke Basic magnetic version
1281.Ø.stroke Basic magnetic version
12- -.Ø.stroke.A Adjustable cushion (from Ø16)
12- -.Ø.stroke.M Basic version magnetic piston
12- -.Ø.stroke.A.M Cushioned with magnetic piston (from Ø16)
1319.Ø.stroke.01 magnetic chromed rod
1320.Ø.stroke.01 magnetic stainless steel rod
1321.Ø.stroke.01 non magnetic chromed rod
1319.Ø.stroke.02 magnetic chromed rod
1320.Ø.stroke.02 magnetic stainless steel rod
1321.Ø.stroke.02 non magnetic chromed rod
1260.Ø.stroke.GLB (Microculinders ISO 6432 must be ordered seperately)
1320.Ø.stroke.GLB (Cylinders must be ordered seperately)
1303.Ø.stroke.01A (CNOMO)
1304.Ø.stroke.01A (CETOP)
1305.Ø.stroke.01A (ISO)
1303.Ø.stroke.02A (CNOMO)
1304.Ø.stroke.02A (CETOP)
1305.Ø.stroke.02A (ISO)
1325.Ø.stroke.01 magnetic Basic version
1326.Ø.stroke.01 non magnetic Basic version
1345.Ø.stroke.01 magnetic extended front cover
1347.Ø.stroke.01 non magnetic extended front cover
1325.Ø.stroke.02 magnetic push-pull rod version with ISO standard
1326.Ø.stroke.02 non magnetic push-pull rod version with ISO standard
1325.Ø.stroke.06 magnetic twin rods push-pull version
1326.Ø.stroke.06 non magnetic twin rods push-pull version
1330.Ø.*.01 magnetic female pinion version
1331.Ø.*.01 non magnetic female pinion version
1332.Ø.*.01 magnetic male pinion version
1333.Ø.*.01 non magnetic male pinion version
1400.40.stroke.01.1 regulation on the outward stroke-tank in line
1400.40.stroke.02.2 regulation on the inward stroke
1400.40.stroke.03.2 regulation in both directions
1400.40.stroke.01.05 regulation on the outward stroke with stop
1400.40.stroke.01.06 regulation on the outward stroke with skip and stop
15_ _.Ø.stroke._ _._ basic version push/pull
1500.Ø._ front and rear flanges, foot, male clevis
1500._Fstroke.02.2 Slot fixing screws

104._ series 104 mechanical and manual command
105._ series 105 mechanical and manual command
228._ series 200 mechanical and manual command
224._ series 200 mechanical and manual command
212._ Valves series 200 mechanical and manual command
 211._ Valves series 200 mechanical and manual command
228._ 11._ Pneumatic actuated valves series 200
224._.11._ Pneumatic actuated valves series 200
212/2._.11._ Pneumatic actuated valves series 212 Pneumatic
211._.11._ Pneumatic actuated valves G1 series 211 Pneumatic
6.04._ Accessories G1 series 600
6.07._ Accessories G1 series 600
6.09._ Accessories G1 series 600
900.18._ Complementary valves series 900
